Jillian Drive
Land subdivision project in Ranui, Auckland
Civil Engineering Excellence
Located at Jillian Drive in Ranui, Auckland, this comprehensive land subdivision project showcases our expertise in chartered civil engineering. The project involved transforming a single residential lot into four separate properties, requiring detailed surveying, infrastructure development, and careful compliance with council regulations.
Project Specifications
- Location: Jillian Drive, Ranui, Auckland
- Development Type: Residential subdivision
- Scale: 1 lot subdivided into 4 lots
Engineering Solutions
- Comprehensive land planning and optimization
- Multi-lot infrastructure design
- Shared access and utility coordination
Engineering Challenges & Solutions
This project presented significant engineering challenges due to the terrain and need to create optimal access for four separate properties. Our team implemented innovative engineering solutions that maximized land utilization while ensuring proper drainage, utility connections, and compliance with Auckland Council regulations for multi-lot developments.
Technical Implementation
The subdivision process involved comprehensive site investigation, detailed engineering design, and efficient project management throughout the consent process. Our chartered engineering expertise ensured all technical aspects were addressed with precision, including:
- Complex boundary planning for four-lot subdivision
- Shared driveway design with appropriate turning radius
- Integrated stormwater management system
- Comprehensive documentation for multi-lot resource consent
Engineering Plans

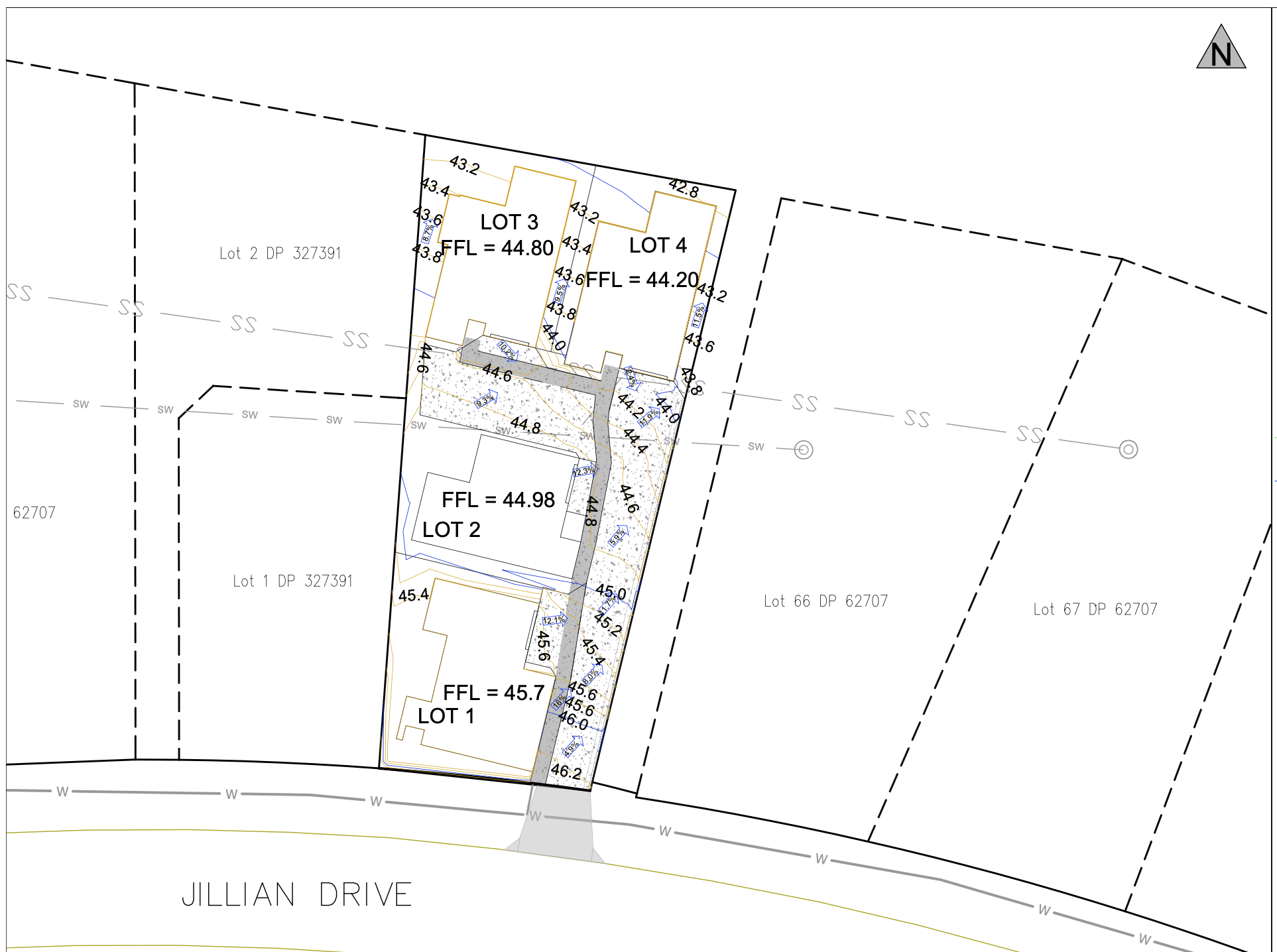

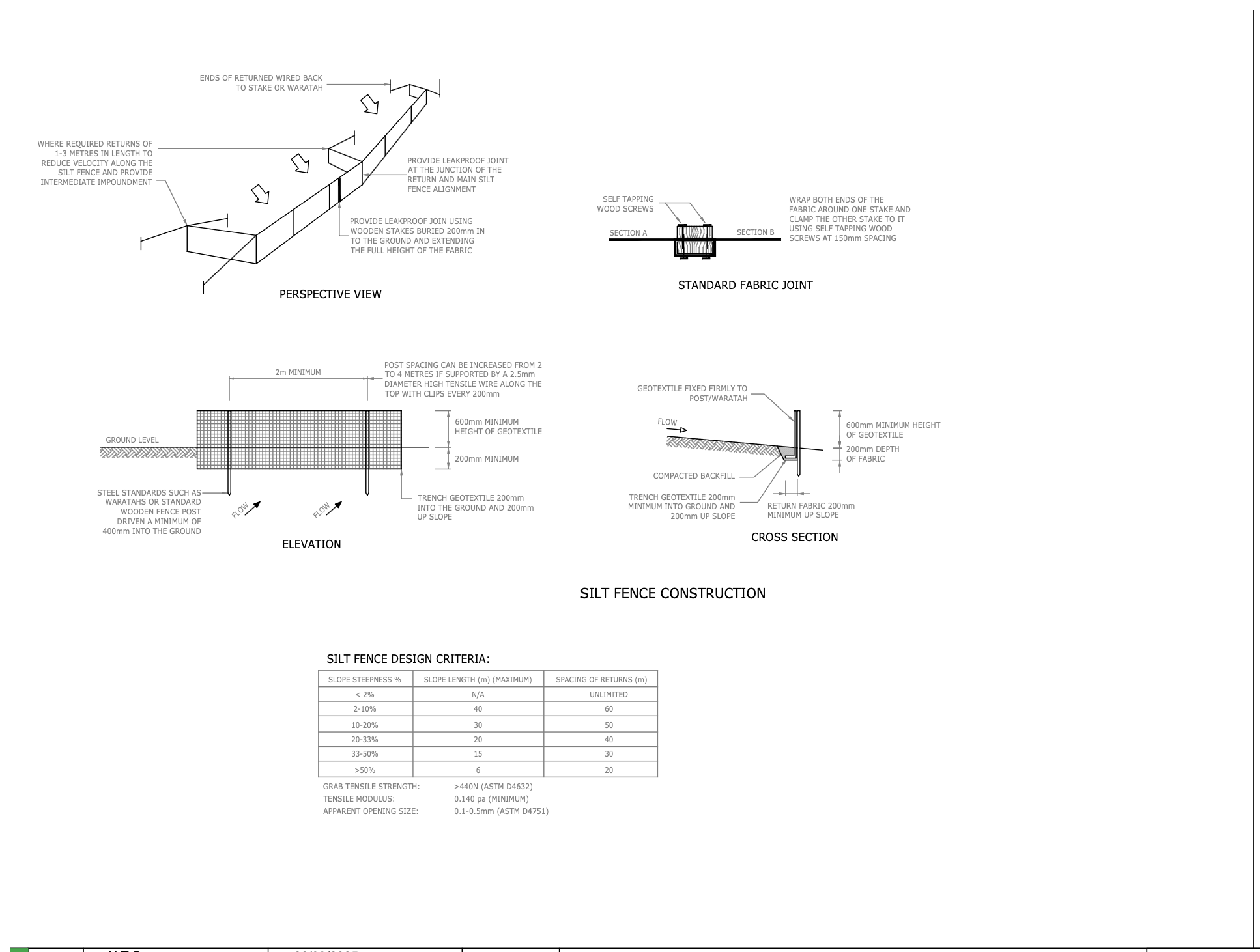

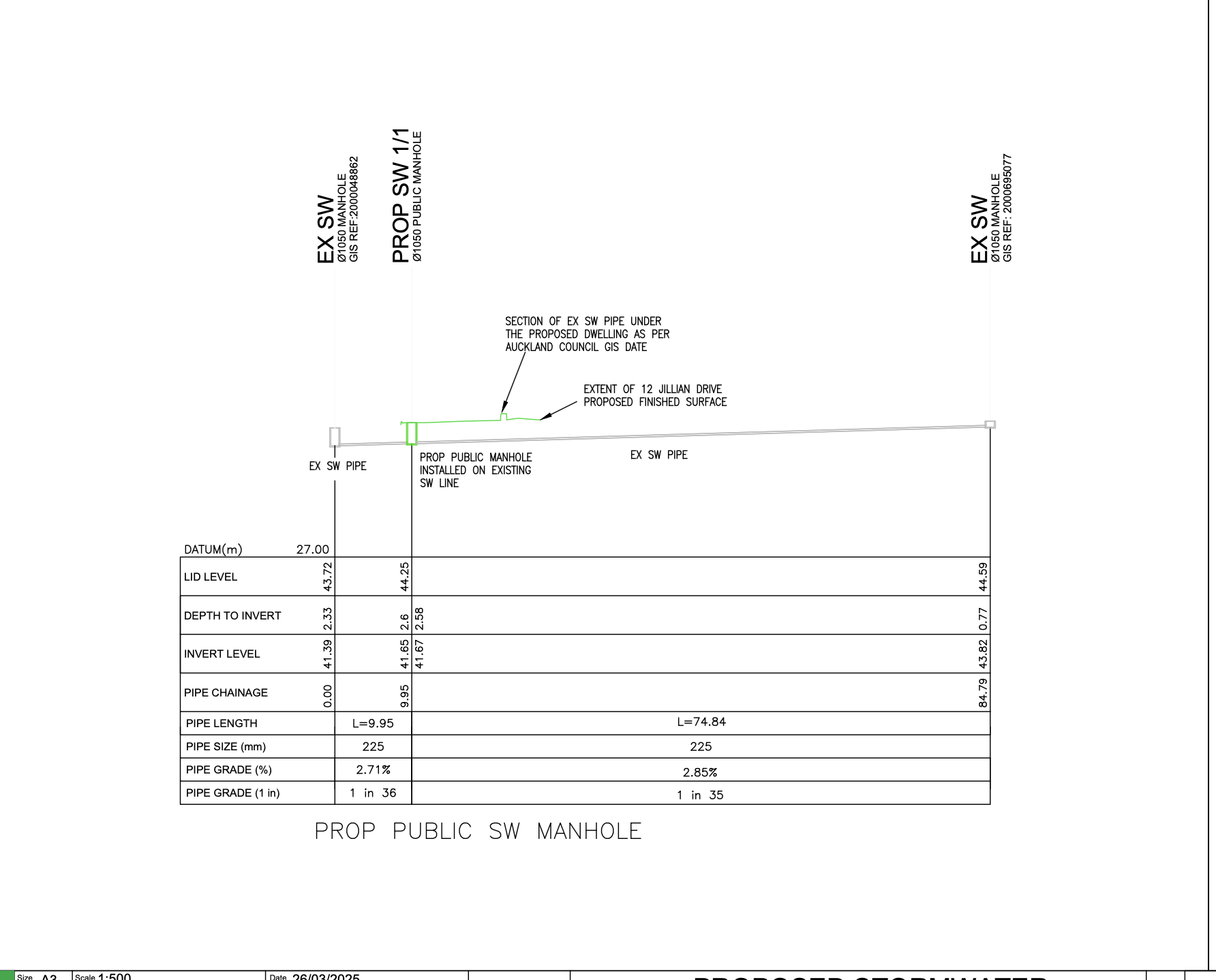

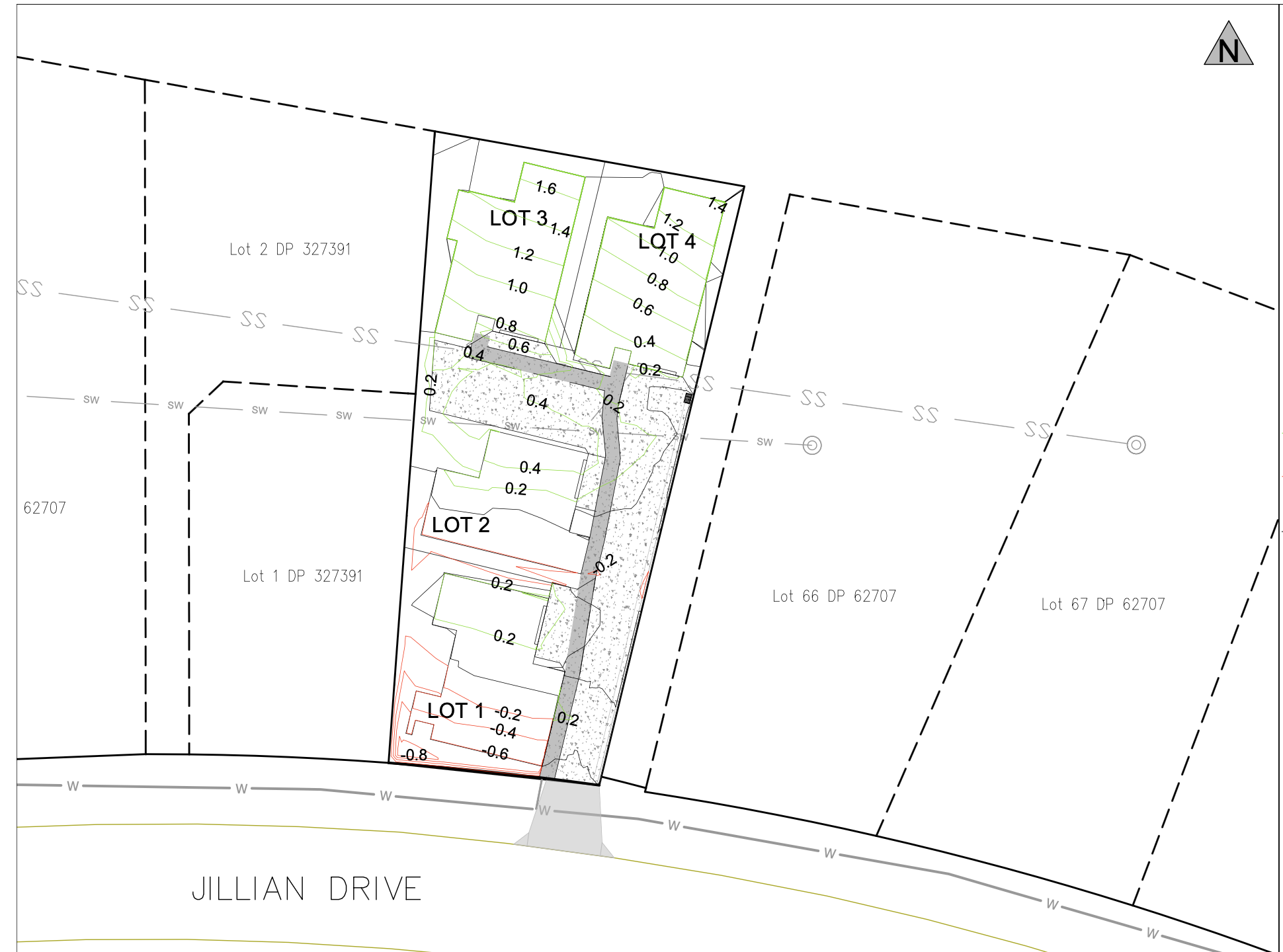

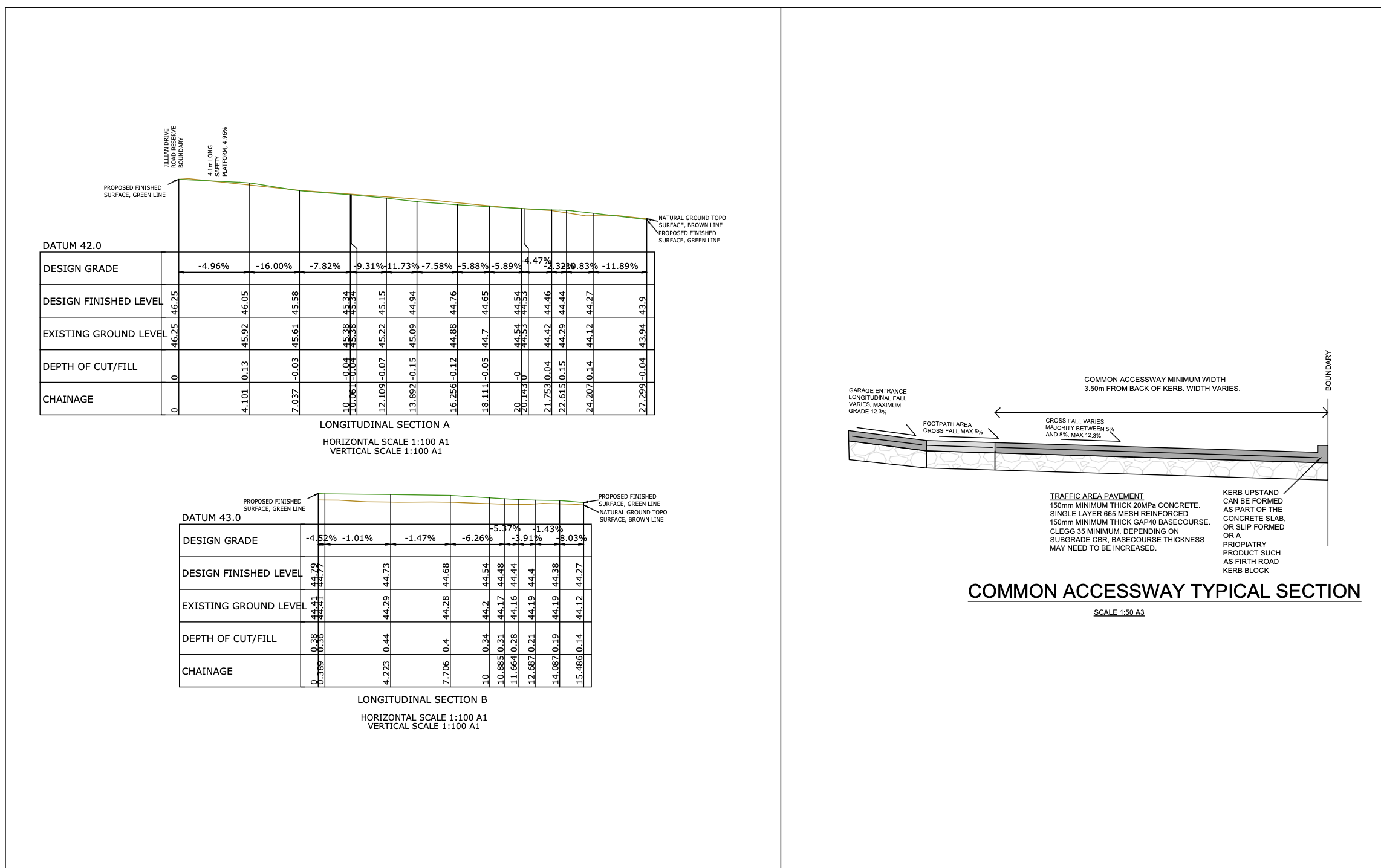

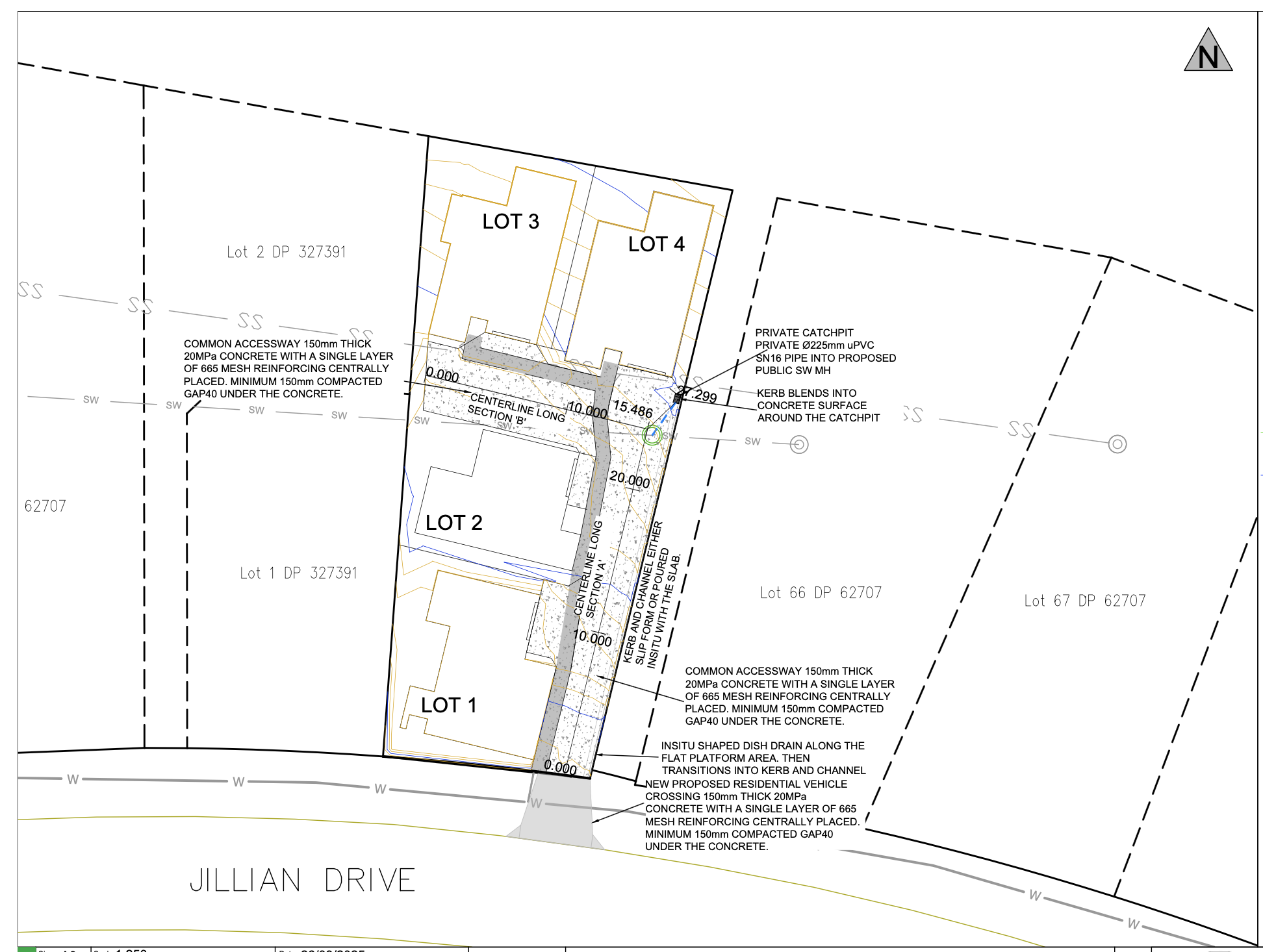

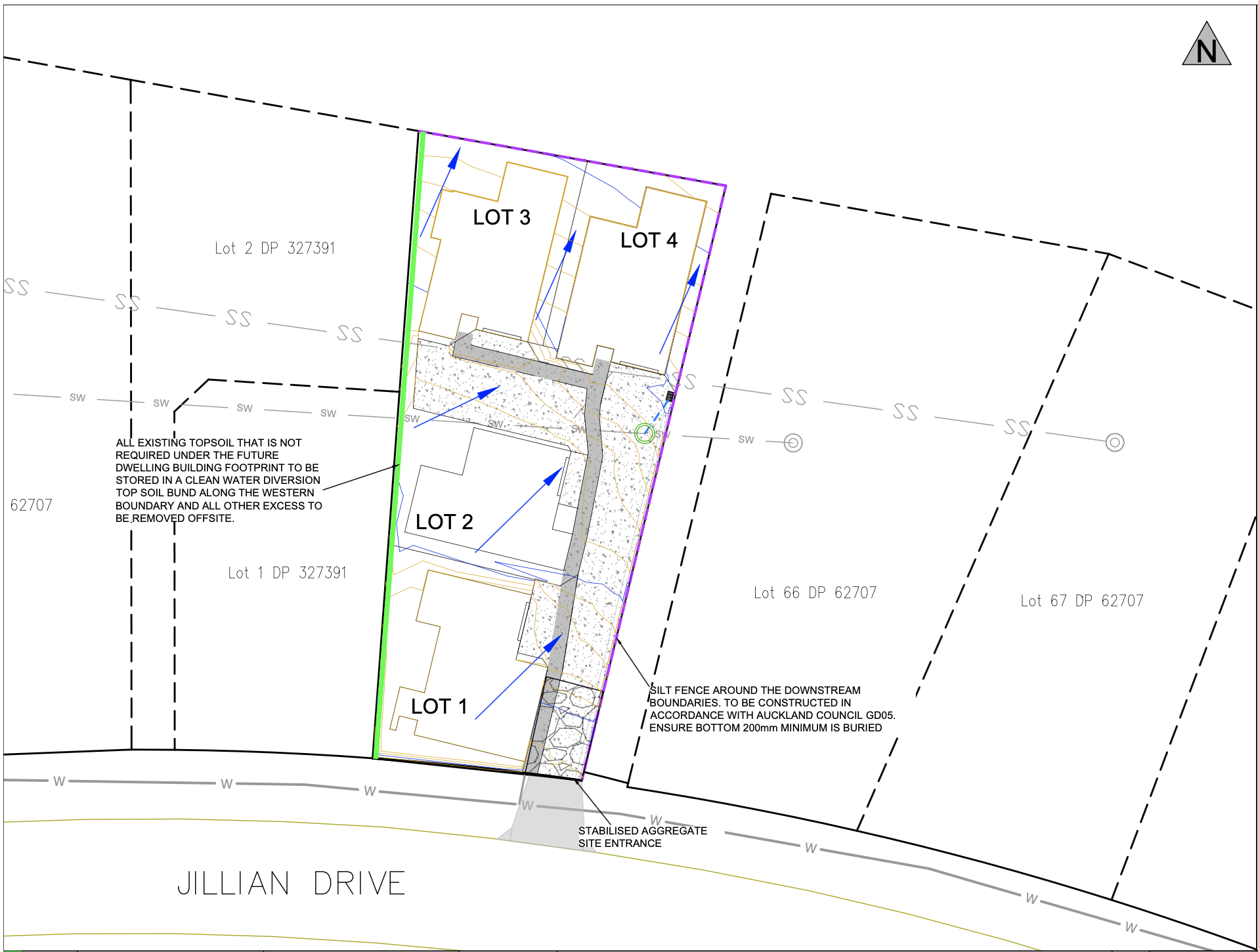

These comprehensive engineering plans detail our approach to the Jillian Drive subdivision project. The drawings illustrate the technical aspects of transforming a single residential lot into four separate properties, including lot configuration, infrastructure design, stormwater management, and utility planning.
Site Assessment
Comprehensive evaluation of the site's topography, soil conditions, and existing infrastructure to determine optimal four-lot subdivision design and identify potential challenges.
Design & Planning
Advanced engineering design of lot boundaries, shared access points, and utility connections to ensure all four properties meet council requirements while maximizing land utilization.
Consent Processing
Meticulous preparation and management of complex resource consent applications, ensuring all technical documentation met Auckland Council requirements for efficient approval of a four-lot subdivision.
Infrastructure Development
Implementation of extensive infrastructure modifications, including stormwater management systems, shared driveways, utility connections, and access solutions for all four properties.
Stakeholder Management
Effective coordination between property developers, council authorities, surveyors, and contractors to ensure smooth project progression and successful outcomes for this complex subdivision.
Quality Assurance
Rigorous quality control throughout the project, ensuring all engineering aspects met the highest standards and complied with regulatory requirements for a 1-to-4 lot development.
"Charter Engineering's work on our Jillian Drive project has been outstanding. Their ability to optimize the subdivision layout and address complex infrastructure requirements has resulted in four premium residential lots that exceeded our expectations in both quality and market value."
Property Developer
Jillian Drive, Ranui
About These Engineering Plans
The engineering plans shown above detail our comprehensive approach to the Jillian Drive subdivision project in Ranui, Auckland. These technical drawings showcase the complex planning and design work required for transforming a single residential lot into four separate properties. The plans address critical aspects including lot boundary configuration, shared access design, stormwater management systems, and utility service connections. Each drawing represents a key component of our engineering solution that balances optimal land utilization with compliance to Auckland Council regulations.
